In this post we try to help you on how to save money, while building a Cafe Racer.
When you are thinking about building a Cafe Racer, there are a 10 steps to consider.
Step 1: Know your budget (and perhaps stretch in it)
We all know, when you start with a 500$ project, you will end up around 750-1000, if you do not overdo it too much. You can easiliy go from 500$ to 2500$, but this isn’t what we want. We want to build a cafe racer on a budget! So be honest to yourself and hedge about of 80% of your budget to be on the safe side.
Step 2: Choosing a Bike
There is a reason why people tend to like Honda CB’s for building a cafe racer. The are reliable, cheap, there are many parts for sale and they do already have a lot of “cafe racerish” parts on them

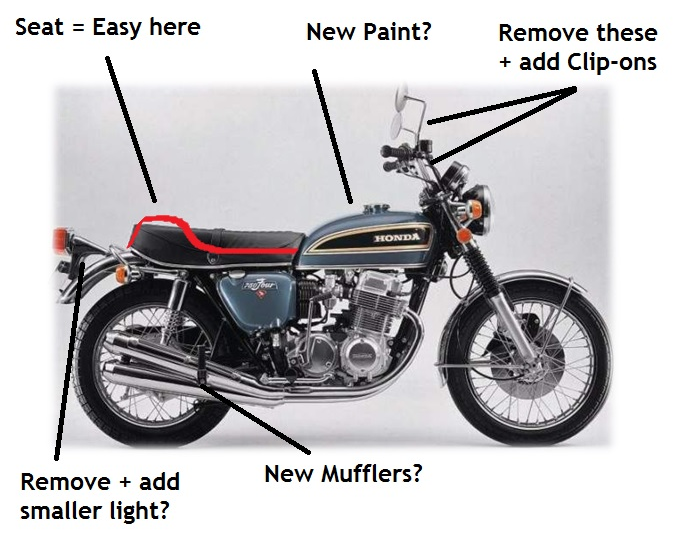

For example (I know, I know, I used Paint for this, but hé, all low-budget! )
There are many other options, but when you choose your bike, it will help if most of the parts are already there.
A 250$ bike, which looks cheap, can be expensive when you need 1000$+ on extra parts… So, take a look at step 1 once again!
Next to that, make sure that other expensive parts like chain/sprockets, tires, suspension etc are also in a decent or good condition. They can set you back a few more bucks than that you are comfortable with.
So make sure, when you choose to build a cafe racer on a low budget, you choose wisely from the start.
Step 3: Planning
Make sure to plan out your idea before doing anything. This will give you an idea what work will have to be done, get a budget set for what parts will cost (or at least what parts are needed) and will hopefully keep you from biting off more then you can chew.
Also make sure that you schedule the oursourced parts (if you have any) first. Other people have busy schedules, so anticipate on this.
Step 4: Parts and Materials
What you are going to need is going to depend a bit on the bike. Besides bits and pieces each bike needs individually to make sure it is mechanically ok, the things all bikes will probably require include;
– Brake lines (steel braided is preferable)
– New oil (coolant if its liquid cooled)
– Tires (if they are more then 6 years old, or close to it, or if they look worn out or bad, replace them)
Brake lines and a brake flush is a good idea for any bike, brake lines are only good for so long and 30 year old rubber lines are no good. Same with tires, unless they have been replaced in the last 5 years and have good tread left they should be replaced. Change all the fluids.
Things needed for conversion will depend on taste but common parts that are changed include:
– the seat
– the lights (head light, directionals/signals, tail light)
– air filter
– gauge cluster
Overall items that will are needed for the build:
– A fairly well stocked tool chest (sockets, wrenches screwdrivers, various sizes bare minimum, tin snip were used a lot)
– Paint + Primers etc.
– Car edge protector/moulding
– Electrical tape
– Heat shrink tubing
– LOTS of crimp connectors
– A can or 2 of brake cleaner
– Paper towels
– Automotive tape
– A car jack helps if you remove the engine
– Polish compound (a small tube will suffice unless you know you have LOADS of chrome)
– New gauges (new to the bike)
– New oil gaskets
– New headlight
– New signals
– New taillight
– New mirrors
– New Grips
Step 5: Delicate Parts
Before heading to the next step, make note of certain parts that are delicate and designate a special, safe spot for these. These parts will include a radiator (most bikes have them whether liquid cooled which has to have one, and air/oil cooled which can have a small rad for the oil),the carbs should be careful with, plastic fairings (even if you don’t intend to put them back on, these are worth good money if you decide to sell them), the gauge cluster (unless its really knackered already).
Step 6: Preparations
Well, you have already seen many cafe racer pictures, movies and have read the first 5 steps overhere, but there is much more to prepare for!
Before proceeding, grab a camera, start snapping photos. The more, the better. One because then you can document your build, but you have pictures to refer back to when trying to re assemble or aks for help on the internet! Also, its not a bad idea to buy a box of Ziplock bags and a new roll of masking tape to label and put bolts in so if you take a pile off you know where they go back.
Remove as much from the bike as possible that is easy (plastic, gauges, handlebars, seat, lights, horns) We want to try to get it down as much as possible to assess.
Try removing it down to just a rolling frame with the engine in the frame (take it out if you need to or want to) and the wiring harness (again, unless you want to remove the harness and can put it back. Harnesses are pretty easy to put back).
If you do plan to remove the engine, this is a good guide for removing it on the cheap. Try to use more padding then this guy though, be a bit more gentle;
Step 7: Frame Cutting
The title can be frightening. Most bikes have there frame extend out over the rear wheel to support the seat and the lights back there. This usually is too long and will need to be cut.
It is very important to measure twice (or more) and cut once though! Think this through before cutting unless you can weld bits back. You don’t want to take too much off. We suggest figuring out how long the seat and cowl have to be, possibly adjusting them and cutting the frame at a location that is easy to cut, that will end just before the cowl, or just after.
Again, be very careful you don’t cut off anything important. Check where your shocks mount to and make sure you aren’t taking the mounts off with the cut, or anything else vitally important or structural.
Step 8: Paint, coatings or Just Cleaning?
Once you have a bike apart, it will usually be dirty (the older, the dirtier usually). Try washing everything off, does the paint on the frame look good? Just because its dirty doesn’t mean the paint is all bad. If your paint looks brand new other then a few spots, sand anywhere the little spots of paint have come off, if they have rust, sand until the rust is gone and your down to bare metal. Sand a bit farther then where the rust was. Clean the areas off with solvent, then with water, dry and paint. Also use clear coat to seal the deal.
If a lot of the frame has surface rust, a lot of paint is gone, you may have to remove everything from the frame and have the whole thing soda/sand blasted and repainted (yourself or professionally). There is no point in leaving problem areas that aren’t problems yet only to have them become problems. You will also need to remove everything if you want a painted frame (TACKY! Unless you have a Ducati or Bimota with a red frame, then its legitimate).
This will also apply to the tank (since its really the only painted thing going back on). Will a good buff and polish make it look like new, or is the paint really faded, scratched, dented? If the tank is dented, definitely fix that. If its a big dent, look into a new tank or see if you can seal the tank off and hook up a pressure washer to it and use a hydroforming technique to push the dent out maybe?You could also try using tie down straps around other parts that you don’t want pushed out that seem like they may get pushed out, that way the tank doesn’t get deformed, only the dents come out. Don’t worry if they come out all the way, just enough that a little body filler can smooth them out. If its small and shallow dent, body filler is your friend.
Since you are customizing the bike and the tank is already off, you will probably want to paint it anyhow. The most important part of painting a tank, well 2 parts actually. Don’t sand down to bare metal unless you are using body filler on a dent, the factory primer is far better then your spray can primer, so taking it down to bare metal will mean rust coming through down the road. Taking it down for body filler in one small area isn’t too bad though, but be sure to wipe clean really clean before priming and do a good job priming. The second thing, prep work is key. Spend hours with fine sand paper smoothing the primer and what not. If you don’t, you can see striations in the paint even though its smooth as a babies ass. And the clear coat won’t fix that.
This step also applies to individual parts.
Step 9: Reassembly
Reassembling everything before doing the seat is a big help. It make sure that you don’t build the seat only to have something in the way later and having to modify it. As well, you can then mess about with mounting as the seat may need to come off occasionally, its nice if its not too hard to take off.
Doing a stylized bike is fairly straight forward before the seat, its just reassemble it with original parts and new/aftermarket parts. Some aftermarket parts won’t fit, or some new parts won’t.
Test fit things before putting them on and test them with a few other pieces, especially aftermarket parts. Rather then putting something on and taking it off again and again, if you test it you can usually get stuff put on once and not have to undo it again.
Being that its reassembly and parts may have been painted and what not take your time as to not scratch paint, and undo work you have done already.
Now at some point you will realize, this thing COULD be ridden as is. DON’T DO IT! It may be tempting to take it for a test drive, but don’t. By this point you have long since drained the oil, she will be dry, you may have missed a vital component (brakes maybe!) so its best not to drive it until its finished. However, test everything as you go. Once you get to the, I COULD drive this stage, fill the fluids and turn it over though. It easier to fix something now while its accessible rather then later, but don’t do anything stupid. Feel free to pull it slowly out of the garage in first if you want to check all the drive train is connected though.
Step 10: Enjoy!
Don’t forget you are doing something great! You are building a cafe racer on a budget.
It’s your own creation, it’s unique and it will learn you a lot.
It may be a struggle, but now it’s the time to start enjoying the build, and lateron, the ride!
